JOROTO JH50 Recumbent Exercise Bike – Magnetic Resistance, 16 Levels, 180 kg Capacity
Experience smooth and comfortable indoor cycling with the JOROTO JH50 Recumbent Exercise Bike, designed for home fitness, gentle cardio, and long-term use. Its sturdy steel frame supports up to 180 kg, while the quiet magnetic resistance and ergonomically padded seat with full back support make every ride safe and enjoyable for seniors, beginners, or those in rehabilitation.
With 16 adjustable resistance levels and a near-silent belt drive, the JH50 lets you tailor your workouts without disturbing others. Connect via Bluetooth to the JOROTO App for real-time tracking, or enjoy interactive rides with Kinomap and Zwift for added motivation.
Key Features
-
Durable Steel Frame Supporting Up to 180 kg
-
16-Level Magnetic Resistance with Ultra-Quiet Belt Drive (<10 dB)
-
Ergonomic, Thickened Seat with Full Backrest Comfort
-
Bluetooth Connectivity: JOROTO App, Kinomap & Zwift Compatible
-
LCD Display Tracks Time, Speed (km/h), Distance (km), Calories & Heart Rate
-
Step-Through Design with Lockable Armrests for Easy Entry
-
95% Pre-Assembled with Transport Wheels for Quick Setup
Comfortable, Safe, and Easy-to-Use The JH50’s widened frame and step-through design make it accessible for users with limited mobility. The thick seat cushion and supportive backrest reduce strain on the lower back and joints, while the stable frame and quiet resistance system deliver a smooth, confidence-boosting ride for daily cardio, recovery, or light strength sessions.
- Germany: Free shipping.
- Other EU Countries (except Malta & Cyprus): A small fee may apply for oversized or heavy products,
- depending on the carrier.
- Processed within 48 business hours
- Delivery in 2–7 business days via FedEx, DPD, GLS, UPS, DHL
- Track your order with a tracking number sent by email
- 14-day easy returns
- 12-month warranty
If you have any questions or need assistance, our customer support team is here to help.
- Email: support@jorotofitness.com
- Operating Hours: Mon–Fri, 9 a.m.–6 p.m.

JH50 Installation Guide
Follow this simple step-by-step video to assemble your JH50 quickly and safely — perfect for first-time setup.

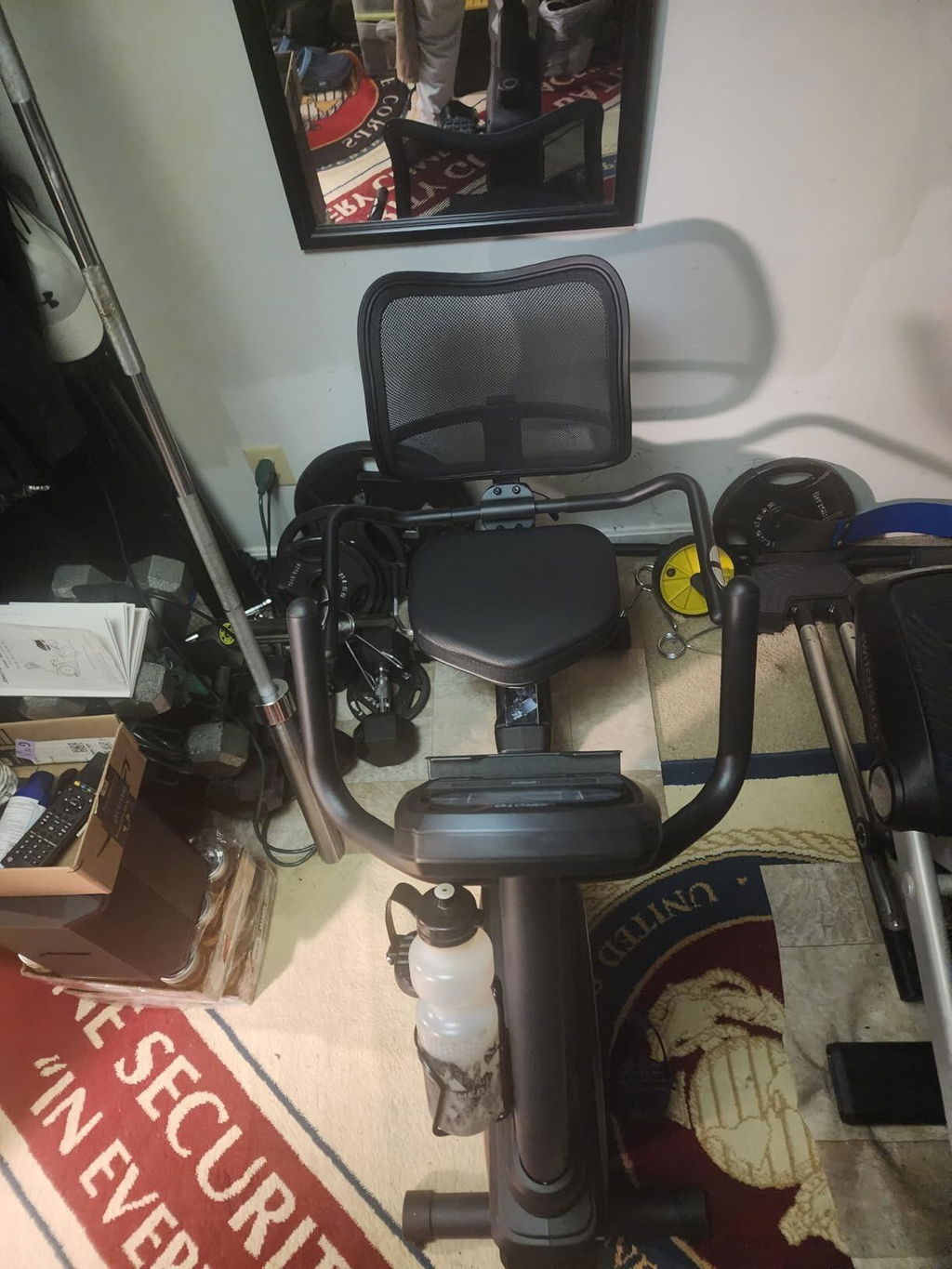

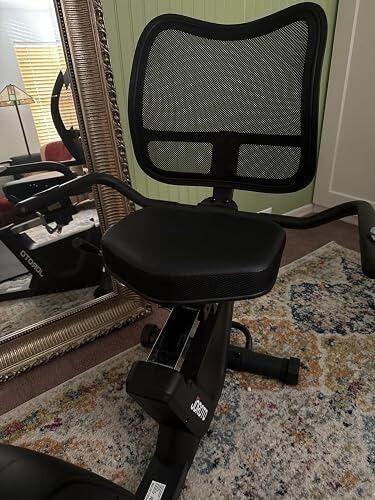

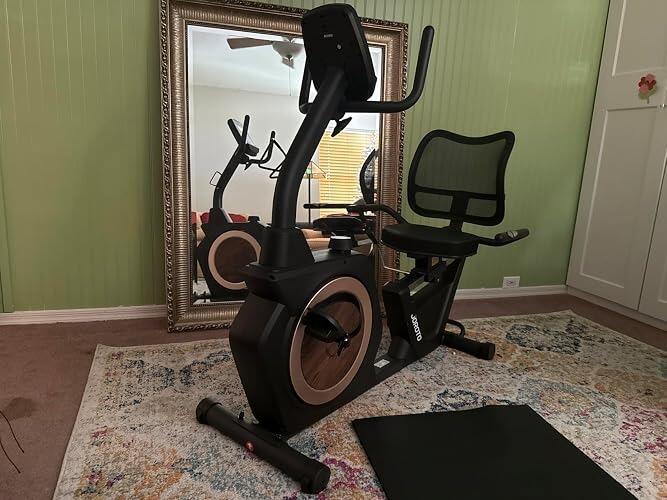

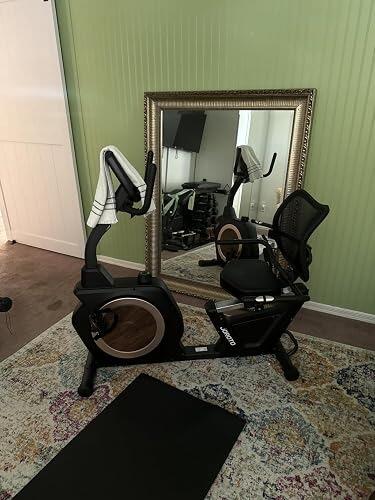

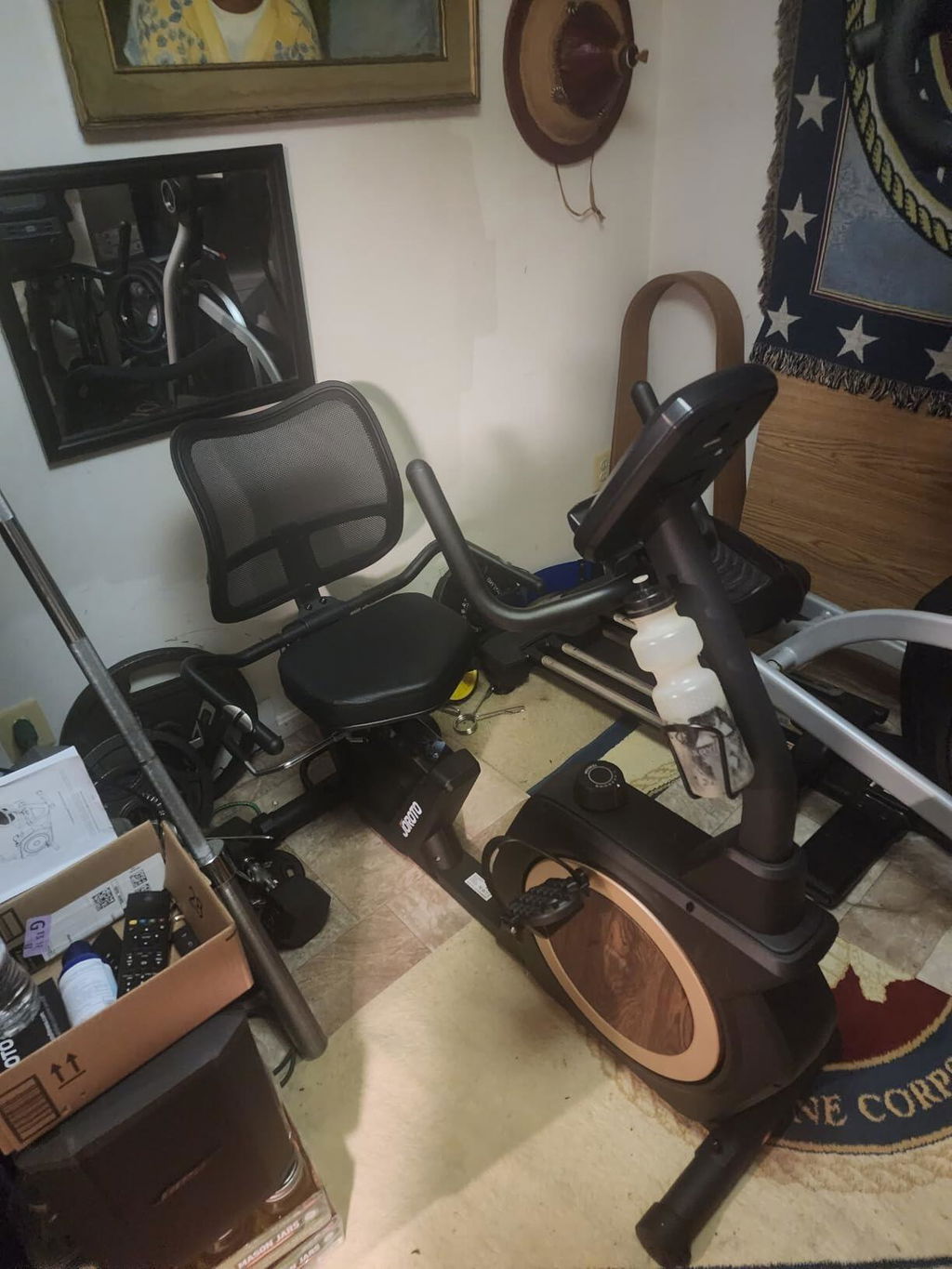

Real Home Experience with the JOROTO JH50
See how a real user enjoys smooth, low-intensity, and comfortable indoor cycling at home.
Product Specifications
| Brand | JOROTO |
| Model Name | JH50 Recumbent Bike |
| Frame Material | Heavy-Duty Steel |
| Power Source | Battery Powered |
| Resistance Mechanism | Magnetic |
| Resistance Levels | 16 Levels |
| Maximum User Weight | 180 kg (400 lbs) |
| Seat Type | Ergonomic Padded Seat with Backrest |
| Product Dimensions (L × W × H) | 124 × 66 × 117 cm |
| Net Weight | 38 kg |
| Included Components | JH50 Bike, Protective Cover, User Manual |
| Warranty | 2 Years |
FAQ
Quick Start Guide
1. How can I get my JH50 ready for use?
Before your first workout:
- Place the bike on a stable, level surface.
- Check that the seat, handlebars, pedals, and other required components are installed according to the user manual.
- Make sure all accessible monitor and sensor connections are properly connected.
- Check that the seat can be adjusted and moves smoothly along the rail.
- Confirm that the pedals rotate smoothly and the resistance system operates as intended.
- Follow the setup and operating instructions in the user manual.
If you need assistance after completing these checks, contact our support team with your order number and clear photos or a short video.
2. How can I troubleshoot the monitor and its connections?
If the monitor does not turn on, displays incomplete information, or does not respond as expected:
- Check that the batteries are installed correctly and have sufficient power.
- Remove and reinstall the batteries according to the user manual.
- Check the battery compartment for visible damage.
- Inspect accessible monitor and sensor cables to ensure they are securely connected.
- Restart the monitor and check whether it operates normally.
If the monitor still does not work, contact support with your order number, a photo of the display, and a short video showing the issue.
If a cable appears disconnected inside the frame, or the battery compartment is damaged, do not attempt repairs that require dismantling internal components unless the user manual specifically permits them.
3. How can I keep my JH50 running smoothly and quietly?
Regular inspection and proper assembly can help maintain a smooth workout experience.
- Make sure the bike is positioned on a stable, level surface.
- Check that the pedals and other accessible fasteners are securely installed.
- Keep the bike clean and free of dust or debris.
- Check visible moving components for signs of wear or damage.
- If you notice an unusual clicking, squeaking, or grinding sound, try to identify when it occurs without dismantling the bike.
- Record a short video showing the sound and the movement that produces it.
If the noise persists, or you notice a loose or damaged component, stop using the bike and contact support.
Do not dismantle the crank, flywheel, belt system, or other internal mechanisms unless the user manual specifically permits it.
4. How can I install the pedals and adjust the seat correctly?
Pedal installation
- Identify the left and right pedals before installation.
- Follow the installation direction and threading instructions in the user manual.
- Align each pedal carefully and begin threading by hand.
- Avoid forcing a pedal into the crank arm.
- If the threads do not engage smoothly, stop and check the alignment.
If a pedal cannot be installed correctly or the threads appear damaged, contact support before using the bike. Damaged threads may require replacement parts or professional assistance.
Seat and backrest adjustment
- Follow the user manual to adjust the seat position.
- Check that the adjustment mechanism moves freely and locks securely.
- Confirm that the backrest and its fasteners are properly secured before exercising.
- If the seat becomes difficult to move or the adjustment mechanism appears stuck, do not force it.
If the seat or backrest cannot be secured properly, stop using the bike and contact support.
For a comfortable fit, review the product dimensions and adjustment range before purchasing. If you experience knee pain or discomfort during exercise, stop your workout and reassess your riding position before using the bike again.
5. What should I check when I receive my JH50?
Before assembly and use, please check:
- The packaging and main components for visible shipping damage.
- The included hardware and accessories against the packing list.
- The pedals, seat, backrest, handlebars, and monitor for visible damage.
- The screws, washers, adjustment knobs, and other small parts.
- The user manual and included assembly materials.
Some small parts may be packed separately, so check all packaging before reporting missing items.
If anything is missing, damaged, or incorrect:
- Keep the packaging and affected parts.
- Take clear photos of the product, packaging, and relevant parts.
- Contact support with your order number and photos.
Our support team will help identify the parts and determine the appropriate solution.
6. What should I do if my delivery is delayed or I need help with a return?
For delayed or missing deliveries:
- Check the latest tracking information.
- Confirm that the delivery address is correct.
- If tracking has not updated or the package appears to have been returned to the sender, contact support with your order number and tracking number.
For return or refund requests:
- Contact the original seller or the platform where you purchased the bike.
- Explain the reason for the return and provide any requested order information.
- Keep the original packaging when possible, especially if a return shipment may be required.
- Follow the seller's instructions for return shipping or collection.
If the package was delivered to the wrong address or you did not receive it, let support know so the delivery details can be investigated.
Product Comparison
JH50 vs JH30PRO vs JH30
| JH50 | JH30PRO | JH30 | |
|---|---|---|---|
| Net / Gross Weight (kg) | 40.0 / 47.0 | 26.5 / 30.5 | 24.5 / 28.0 |
| Max User Weight (kg) | 180 | 136 | 136 |
| Product Dimensions (mm) | 1250 × 660 × 1160 | 1340 × 630 × 996 | 1330 × 1020 × 625 |
| Flywheel Material / Weight (kg) | Cast Iron / 5.0 | Cast Iron (Ø240) / 3.3 | Cast Iron (Ø240) / 3.3 |
| Gear Ratio | 1:10 | 1:7 | 1:7 |
| Resistance Levels / Magnets | Manual 16 Levels / 8 pcs | Manual 16 Levels / 8 pcs | Manual 16 Levels / 9 pcs |
| Heart Rate Monitoring | Hand Pulse Sensors | N/A | N/A |
| Console Display | SCAN, Time, Speed, Distance, Calories, ODO, Pulse | Time, Speed, Distance, ODO, Calories | SCAN, Time, Speed, Distance, ODO, Calories, Pulse |
| Display / Backlight | LCD / No Backlight | Backlit Display | Black-on-White / Backlit |
| App & Bluetooth | Bluetooth (Single-mode) + JOROTO / Kinomap | Bluetooth (Single-mode) + JOROTO / Kinomap | Bluetooth (2.4G) + JOROTO / Kinomap |
| User Height Range (m) | 1.55 – 1.95 | 1.50 – 2.00 | 1.50 – 1.95 |
| Seat Adjustment | Rail Slide (Vert 47mm / Horiz 270mm) | Horiz Adjustment 200mm | Vertical 7-hole Adjustment 180mm |
| Handlebar Features | Rear Handlebar 90° Foldable | Fixed | Fixed |
| Color & Finish | Textured Black + Wood Grain + Gold | Black | Black |
